The EOS M 400 - A choice of one 1000 W or four 400 W lasers.
EOS Shared Modules and experience the pinnacle of productivity, quality, and scalability.
The EOS M 400 - A choice of one 1000 W or four 400 W lasers.
EOS Shared Modules and experience the pinnacle of productivity, quality, and scalability.

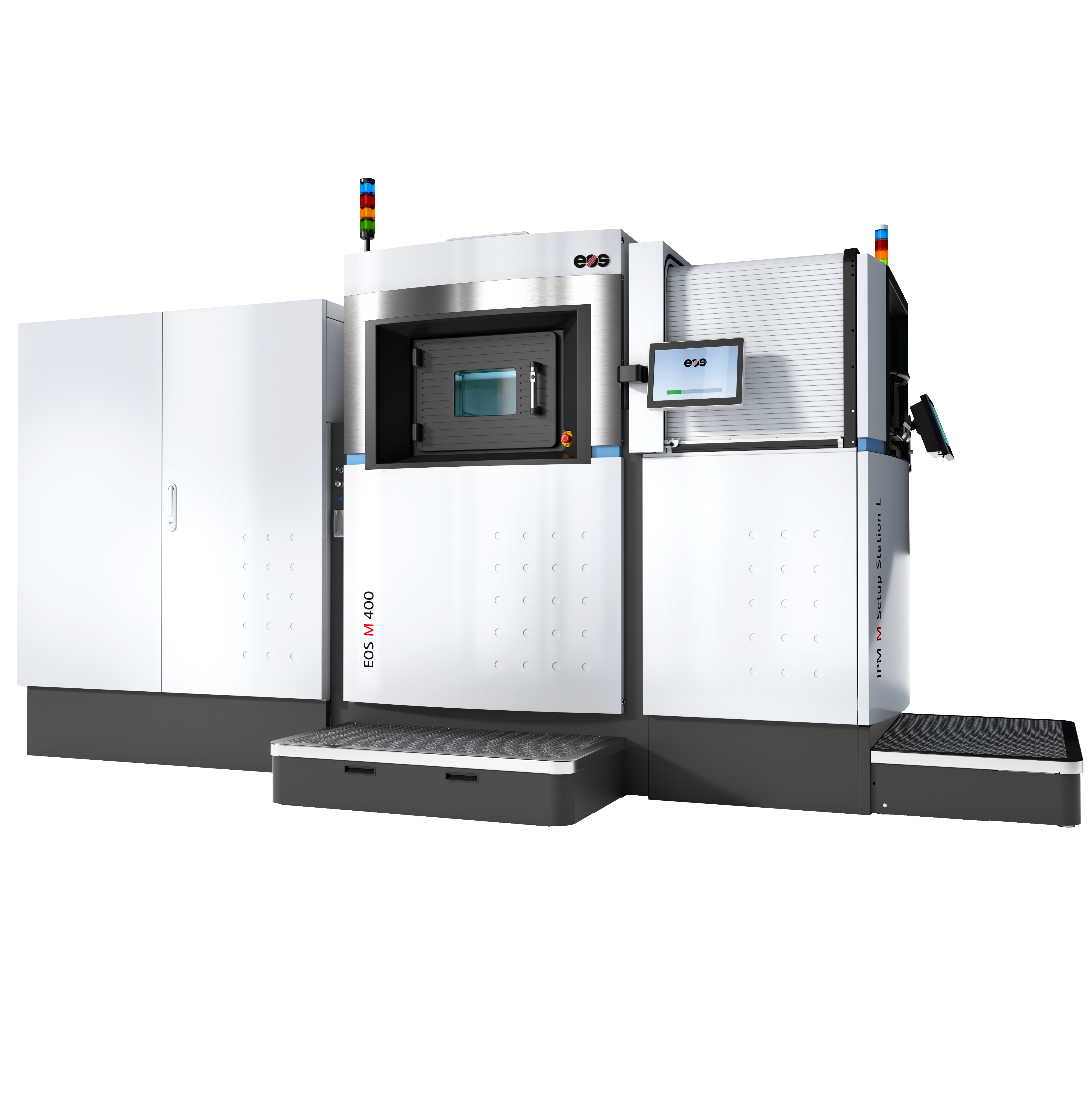

Introducing the EOS M 400 Series – a revolutionary solution for industrial additive manufacturing. This manufacturing-grade machine offers unmatched productivity and reliable DMLS part quality with its large build volume of 400 x 400 x 400 mm and a choice of one 1000 W or four 400 W lasers. With a wide range of materials and seamless integration into your production, the EOS M 400 Series empowers diverse applications. Expand effortlessly with EOS Shared Modules and experience the pinnacle of productivity, quality, and scalability.
Printer Specifications
| Construction Volume | 400 x 400 x 400 mm (15.8 x 15.8 x 15.8 in) (height incl. build plate) |
| Laser Type | Yb-fiber laser; 1,000 W |
| Precision Optics | F-theta-lens |
| Scan Speed | up to 7.0 m/s (23 ft/s) |
| Focus Diameter | approx. 90 µm (0.0035 in) |
| Power Supply | 50 A |
| Power Consumption | max. 50,2 kW / typical 16,22 kW |
| compressed air supply | 7,000 hPa; 20 m³/h (102 psi; 706 ft³/h) |
| Machine Dimensions (W x D x H) | 4,181 x 1,613 x 2,355 mm (164.6 x 63.5 x 92.7 in) |
| Recommended Installation Space | min. 6,500 x 6,000 x 3,300 mm (256 x 236 x 130 in) |
| Weight | approx. 4,635 kg (10,218 lb) |
| Software | EOSPRINT 2, EOSTATE, EOSCONNECT Core, EOSCONNECT MachinePark, EOSCONNECT MachinePark, Materialise Magics metal package and modules |
USPs
Reliable and repeatable part quality
NEW: More precise results in the overlap area
NEW: Lifelong filters
