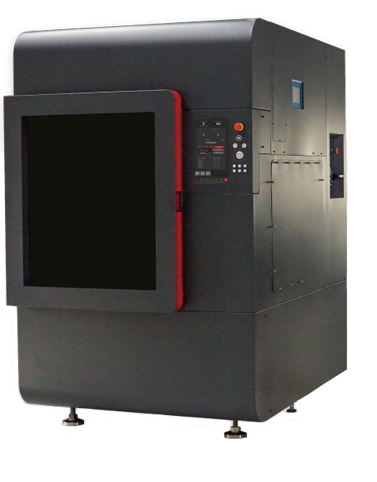

MX-Fab
DED 3D Printer with DMT & 5Axis system
MX-Fab
DED 3D Printer with DMT & 5Axis system
- All-in-one fabrication system
- 5Axis system & DMT technology
- Accurate & stable powder feeding supply
- Efficient inert gas environment creation
- Easy installation
- Compact system & superior build volume
All-In-One Fabrication System ( Easy install and powerful fabrication system)

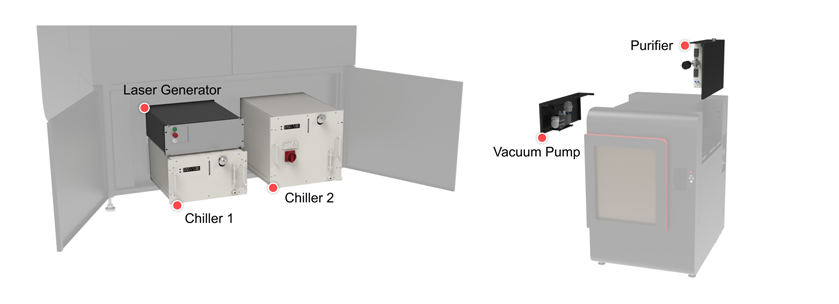

InssTek’s newly developed product, the MX-Fab, is representative system that can produce various field products in a short time with a wide working range. As it is called an all-in-one system, a laser, chiller, purifier, and vacuum pump are equipped in the system. And it is designed with an independent powder feeder to improve user convenience.
Technical Data
| MX-Fab 1 | MX-Fab 3 | |
| Laser Power Ytterbium Fiber Laser(W) | 1,000 (Max. 2,000) | 2,000 |
| X/Y/Z Stroke(mm) A/C Stroke(deg) | 500 × 600 × 385 - 100 ~ + 100 / 360 | 800 × 1000 × 700 - 100 ~ + 100 / 360 |
| Optic Module Beam Diameter(um) | Optic Module Beam Diameter(um) | |
| Powder Feeding System | PCM-Multi (Max. 6 hoppers) | |
| Software(OS / CAM) Feedback System | MX-OS / MiXO Pro DMT® Closed-Loop Feedback Control system | |
| Atmosphere Control System (Option) | MX-OS / MiXO Pro Gas : Argon(>99.999) / O₂ Level : ≤ 50 | |
| Operating Enviroment | Stable Environment | Stable Environment |
| Operating Weight | 350KG(without resin) | 350KG(without resin) |
| Motion Platform | three-axis marble base board | three-axis marble base board |
| Scanning Speed | typical speed 6-15m/s | typical speed 6-15m/s |
| Operating Humidity | less than 40% | less than 40% |
USPs
Reliable and repeatable part quality
NEW: More precise results in the overlap area
NEW: Lifelong filters
APPLICATION
