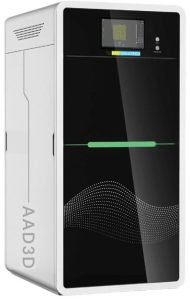

Small SLA Industrial 3D Printer
Small SLA Industrial 3D Printer
Stability
The whole system adopts distributed and modular design 00 marble platform, Galvanometer and electrical control components are supplied by reputable brands
High Precision and Efficiency
Self-developed intelligent variable spot system, High precision liquid level sensor, High precision calibration system
Usability
Self developed controlled software built with a concise interface, Process parameters、optimization algorithms、automatic recognition of model and auto-processing parameters, Modular design approach with both reliable hard and software
Safety
Door interlocking system that is EU, CE and US FCC certified is implementedas part of the safety systems and control measures.
High Stability
- Integrated modularized design
- Triaxial marble base board
- All-in-one frame structure
- Excellent optical instrument
High Accuracy and Fine Details
- Print accuracy : 50μm

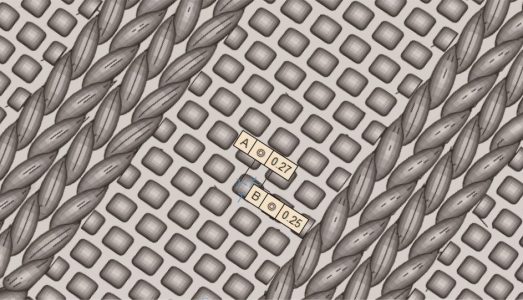

- Case study resolution Vertical : 0.25mm
- Horizonal : 0.27mm）
Intelligent and Convenient
- Easy installation build plate
- Replaceable resin tank
- Remote monitoring
- Real time laser detection
Automatic Guided Control System
- Easy to use
- Fully guided print process
- One-click preparation
- Power outage recovery print system
- Automatic print
Environmental Friendly
Two-tier Deodorization System：
1. Activated Carbon: Water and high-temperature resistance
1.(a). Increased toughness and absorption with high temperature treatment.
2. HEPA Filter: Filter particles as small as 0.3 micron.
Technical Specifications
Smart-400H
- Max Print Size: 400*400*300mm
- Accuracy: ±0.1mm(L<100mm); ±0.1%xl（L≥100mm）
- Layer Thickness: 0.05mm~0.2mm
- Scanning Speed: Speed 6-15m/s
- Resin: Soonser SLA Resin
- Printing Efficiency: 50-100g/h
- Spot Mode: Fixed Spot
- Equipment Size: 800*980*1750mm
- Equipment Weight: 350KG (no resin)
