Printers

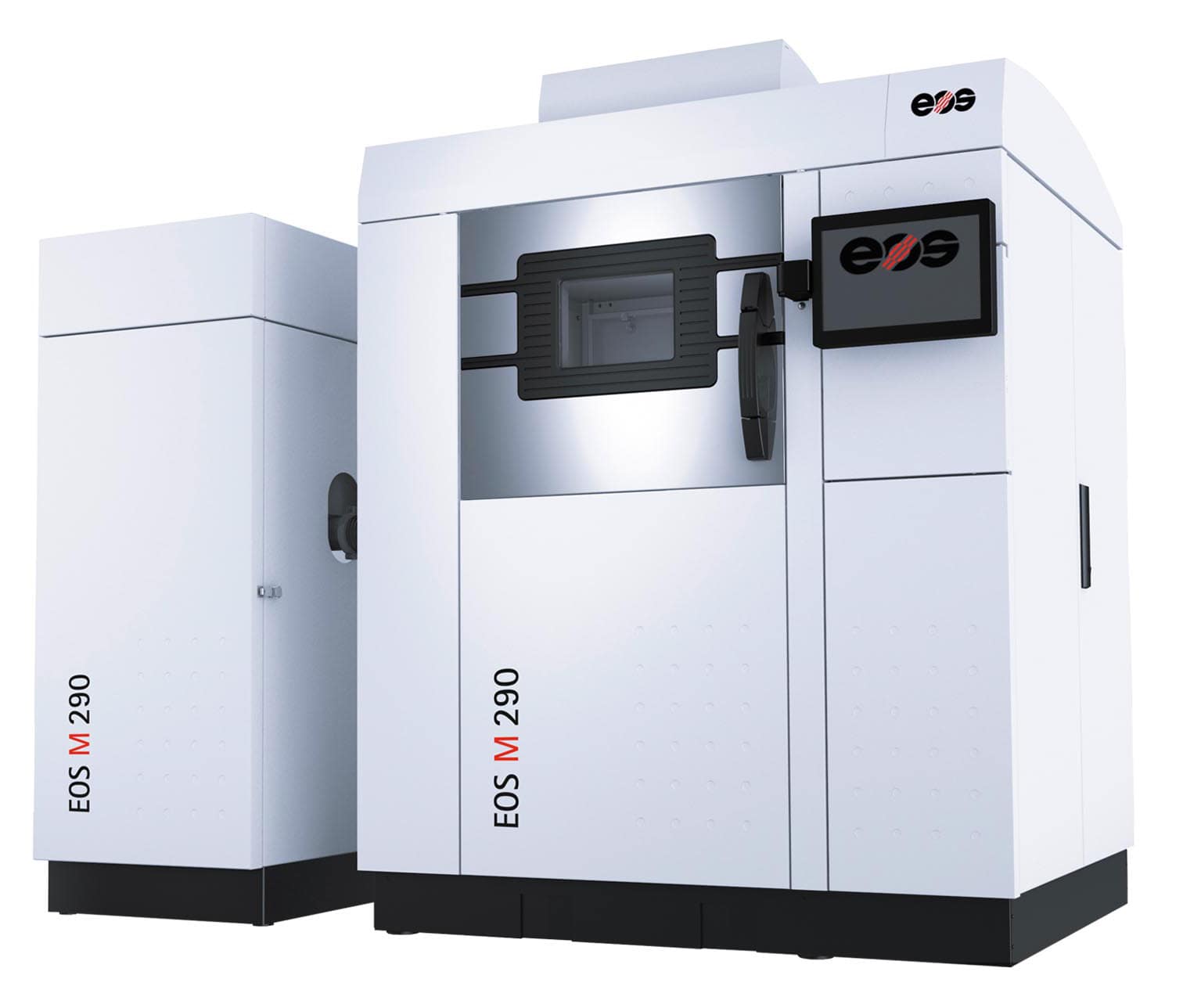

M290 | DMLS
| Construction Volume | 250 x 250 x 325 mm (9.85 x 9.85 x 12.8 in) (height incl. build plate) |
| Laser Type | Yb-fiber laser; 400 W |
| Precision Optics | F-theta lens; high-speed scanner |
| Scan Speed | up to 7.0 m/s (23 ft./sec) |
| Focus Diameter | 100 μm (0.004 in) |
| Power Supply | 32 A / 400 V |
| Power Consumption | max. 8,5 kW/ average 2,4 kW/with platform heating up to 3,2 kW |
| Compressed air supply | 7,000 hPa; 20 m³/h (102 psi; 706 ft³/h) |
| Machine Dimensions (W x D x H) | 2,500 x 1,300 x 2,190 mm (98.4 x 51.2 x 86.2 in) |
| Recommended Installation Space | min. 4,800 x 3,600 x 2,900 mm (189 x 142 x 114 in) |
| Weight | approx. 1,250 kg (2,756 lb) |
| Software | EOSPRINT incl. EOS ParameterEditor, EOSTATE Everywhere, EOSCONNECT Core, EOSCONNECT MachinePark, Materialise Magics Metal Package and modules |

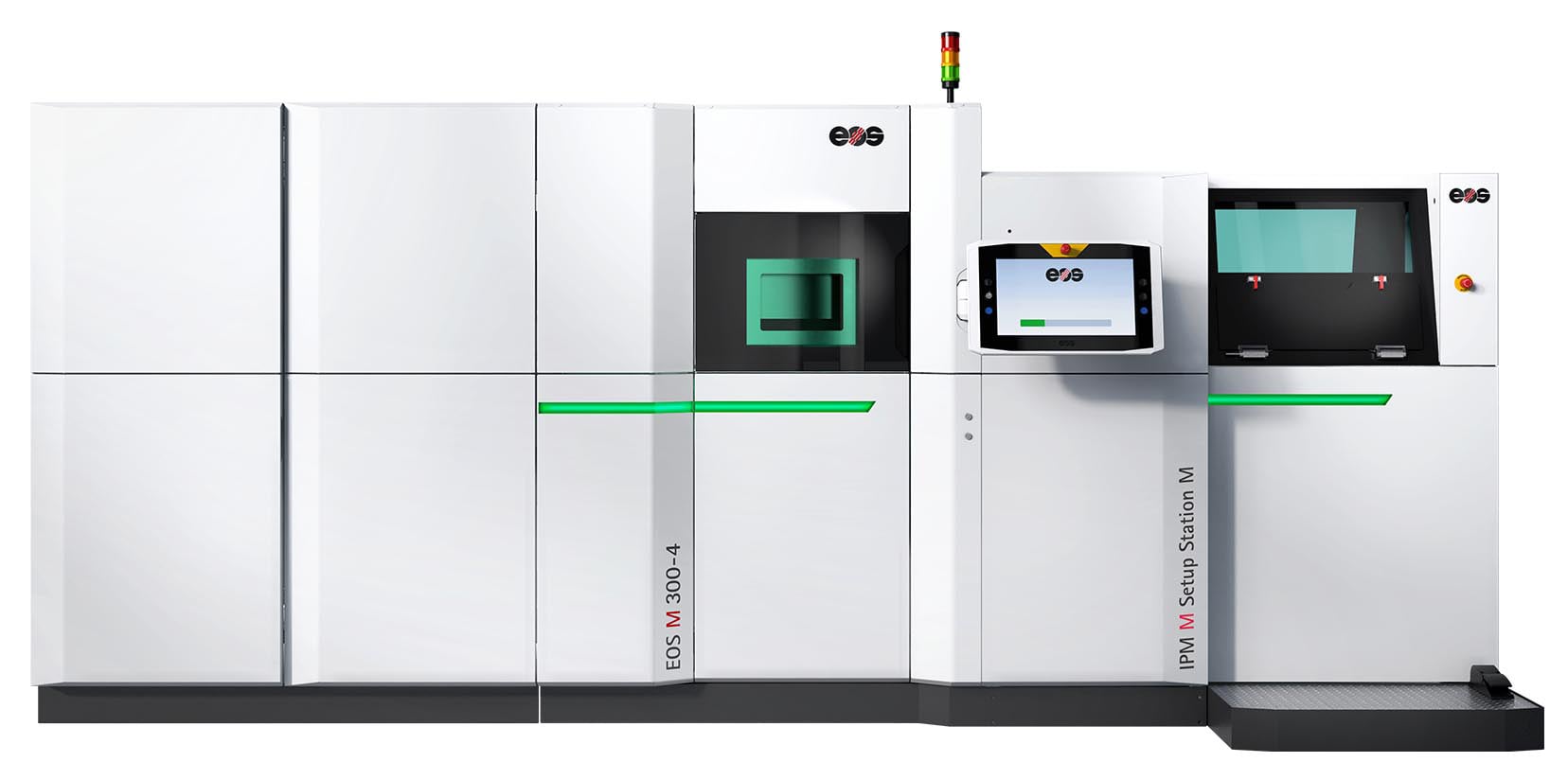

M300-4 | DMLS
| Construction Volume | 300 x 300 x 400mm (11.8 x 11.8 x 15.8 in) |
| Laser Type | Yb-fiber laser; 4 x 400 W |
| Precision Optics | 4 F-theta-lenses; 4 high-speed scanners |
| Scan Speed | up to 7.0 m/s (23 ft./sec) |
| Focus Diameter | approx. 100 µm (0.004 in) |
| Power Supply | 3 x 63 A |
| Power Consumption | max. 36 kW / typical 26 kW |
| Compressed air supply | 7,000 hPa; 15 m³/h (102 psi; 530 ft³/h) |
| Machine Dimensions (W x D x H) | 5,221 x 2,680 x 2,340 mm (205.6 x 105.5 x 92.1 in) (with EOS Transfer Station M) |
| Recommended Installation Space | min. 8,800 x 5,200 x 3,500 mm (346.5 x 204.7 x 137.8 in) |
| Weight | approx. 5.500 kg |
| Software | EOSPRINT 2, EOS ParameterEditor, EOSTATE Monitoring Suite, EOSCONNECT Core, EOSCONNECT Core, EOSCONNECT MachinePark, Materialise Magics Metal Package and modules. |

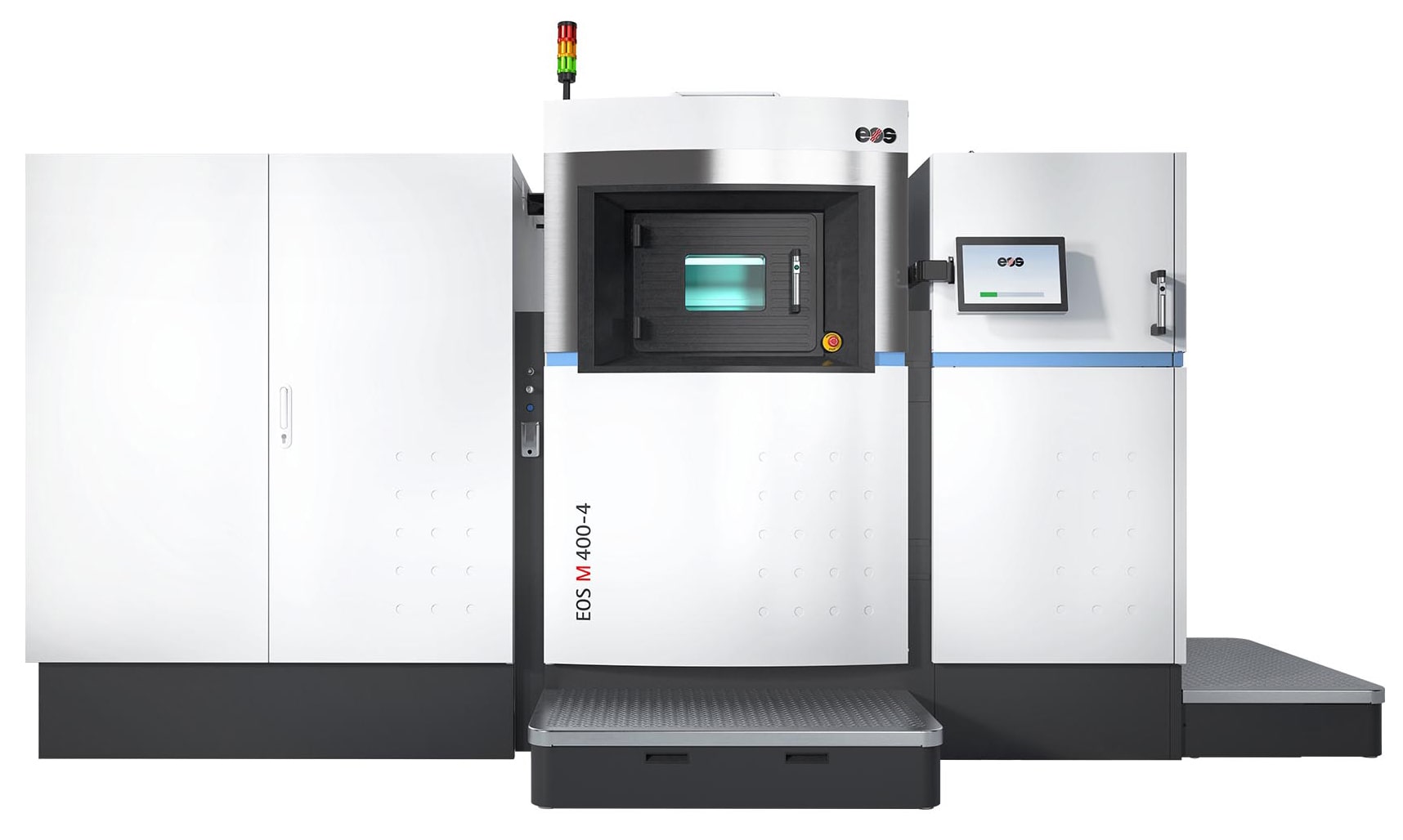

M400 / M400-4
Also available as M400 | DMLS
| Construction Volume | 400 x 400 x 400 mm (15.8 x 15.8 x 15.8 in) (height incl. build plate) |
| Laser Type | Yb-fiber laser; 4 x 400 W |
| Precision Optics | 4 F-theta-lenses; 4 high-speed scanners |
| Scan Speed | up to 7.0 m/s (23 ft/s) |
| Focus Diameter | approx. 100 µm (0.004 in) |
| Power Supply | 3 x 50 A |
| Power Consumption | max. 45 kW / typical 22 kW |
| Compressed air supply | 7,000 hPa; 20 m³/h (102 psi; 706 ft³/h)" |
| Machine Dimensions (W x D x H) | 4,181 x 1,613 x 2,355 mm (164.6 x 63.5 x 92.7 in) |
| Recommended Installation Space | min. 6.500 x 6.000 x 3.300 mm (256 x 236 x 130 in) |
| Weight | approx. 4,835 kg (10,659 lb) |
| Software | EOSPRINT 2, EOSTATE PowderBed, EOSCONNECT Core, EOSCONNECT MachinePark, Materialise Magics Metal Package and modules |

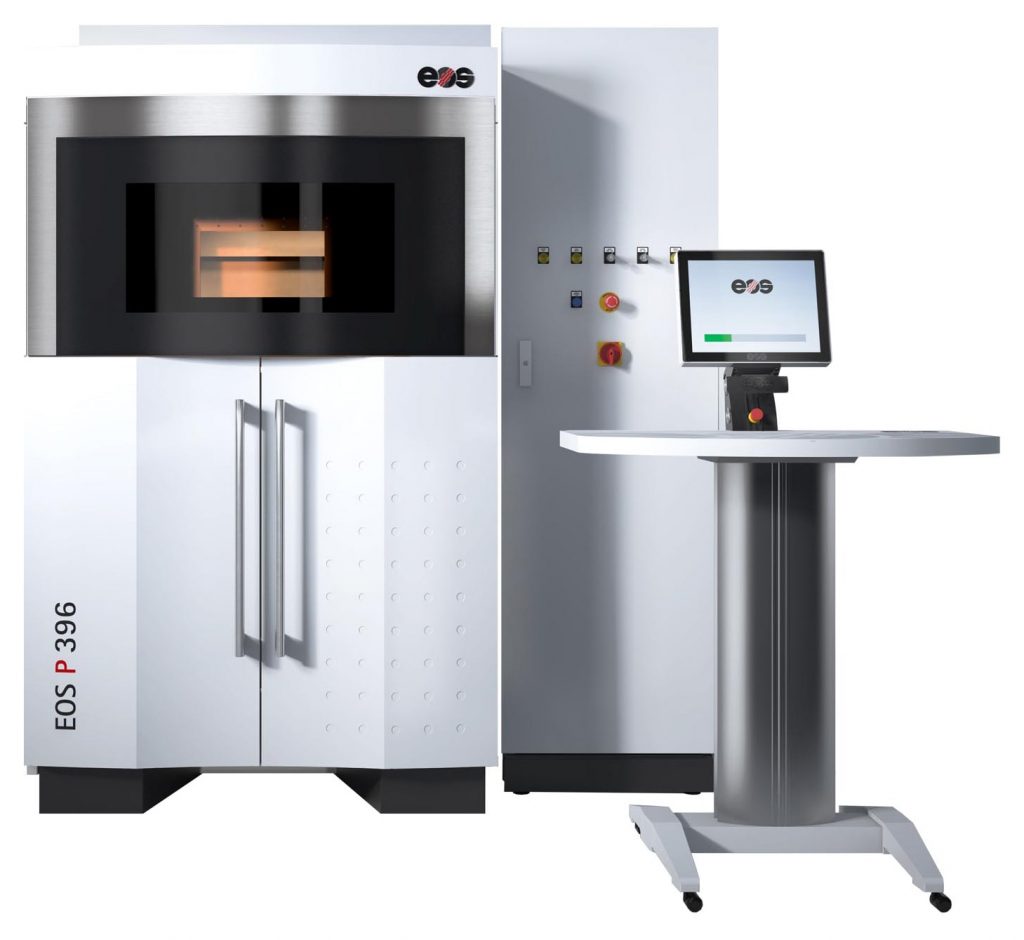

P396 | SLS
| Construction Volume | 340 x 340 x 600 mm (13.4 x 13.4 x 23.6 in) |
| Laser Type | COâ‚‚, 70 W |
| Precision Optics | F-theta lens, high-speed scanner |
| Scan Speed | up to 6 m/s (19.7 ft/s) |
| Power Supply | 400 V / 32 A, max. power supply 16 A |
| Power Consumption | typical 2.1 kW; maximum 10 kW |
| Machine Dimensions (W x D x H) | 1,840 x 1,175 x 2,100 mm (72.4 x 46.3 x 82.7 in) |
| Recommended Installation Space | ca. 4.3 x 3.9 x 3.0 m (169.3 x 153.5 x 118.1 in) |
| Weight | ca. 1,060 kg (2,337 lb) |
| Software | PSW 3.8, EOSCONNECT Core, EOSCONNECT MachinePark,EOSCONNECT (open interface OPC-UA, Web API), Smart Scaling |
