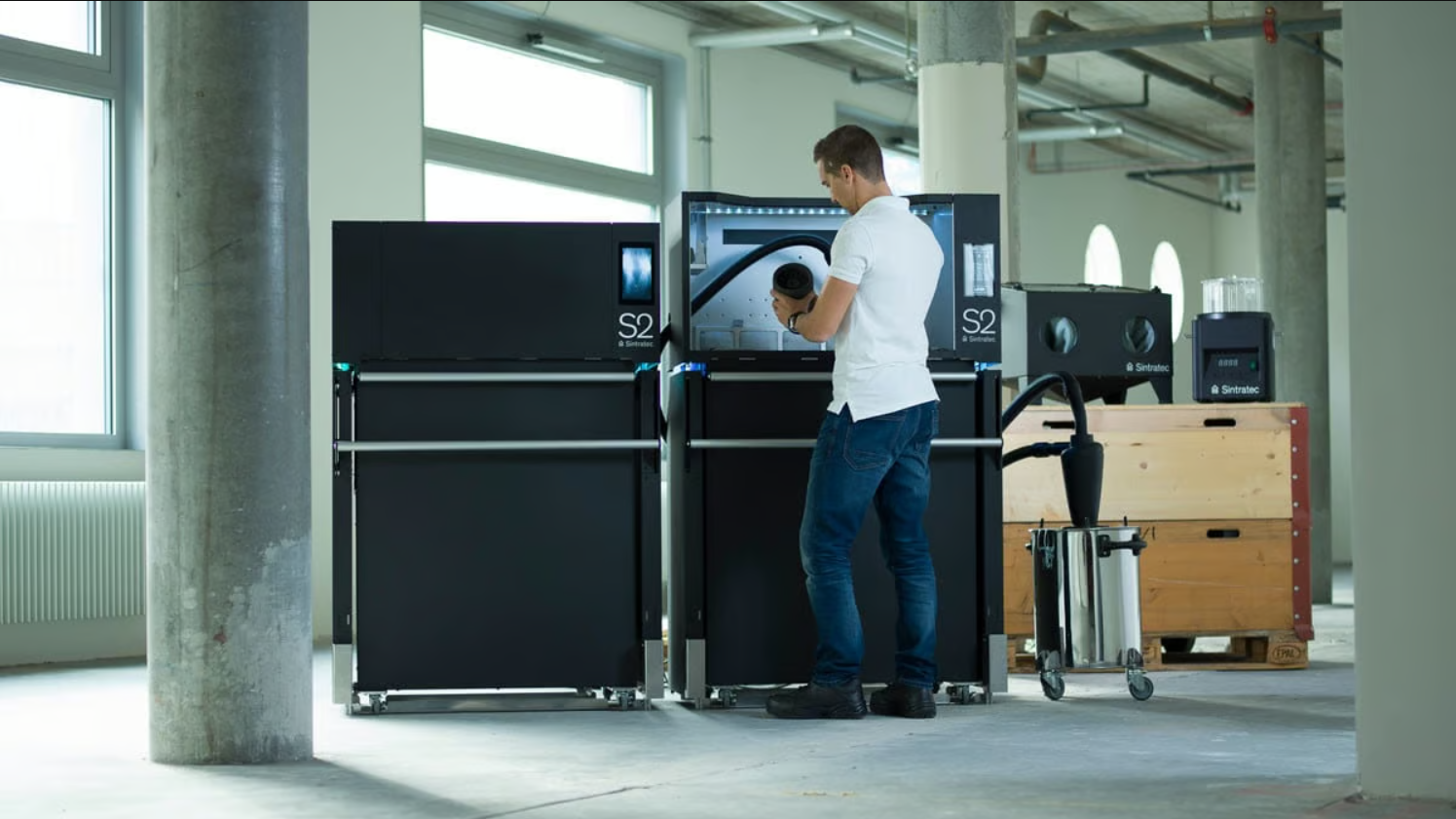

The Sintratec S2 Professional 3D Printing Systems
Your gateway to experience the Professional Grade SLS Product system.
The Sintratec S2 Professional 3D Printing Systems
Your gateway to experience the Professional Grade SLS Product system.
The Sintratec S2 professional 3D printing systems and resilient materials meet the highest industrial requirements. From the consultation to the service – Sintratec offers a user-friendly and overall package for modern, scalable additive manufacturing. To realize your ideas and designs in a fast and cost-effective way. With its modular design, the Sintratec S2 solution optimizes key processes. Loading, printing, parts unpacking, and mixing have been automated and simplified.
Printer Specifications
| Printer Dimensions | 1,490 × 990 × 600 mm |
| Laser Spot Size | 145 μm |
| Laser Type | 10W CW Fiber Laser (1064 nm wavelength) |
| Power supply | 230 V | 11 A max | 50 – 60 Hz |
| Weight | 72 Kgs |
| Material Core Unit | |
| Dimensions (h × w × d) | 1100 × 850 × 530 mm |
| Build cylinder height | 400 mm* |
| Build cylinder diameter | 160 mm* |
| Build cylinder volume | 8 l |
| Weight | 59 Kgs |
| Integrated Powder Handling Station | |
| Dimensions (h × w × d) | 1,570 × 990 × 600 mm |
| Power supply | 230 V | 5 A max | 50 – 60 Hz |
| Available motorized sieves | 140 μm | 314 μm (mesh size) |
| Touchscreen | 7” (3280 × 2464px) |
| Weight | 57 Kgs |
USPs
Superior Print Quality:
Excellent mechanical properties and dimensional accuracy.
High Productivity:
Powerful laser and fast scanning for maximum efficiency.
Versatile Material Options:
14 materials, and 26 parameter sets for various applications.
Seamless IIoT Integration:
Complete digital process chain with EOSCONNECT Core.
Enhanced Uptime:
Digital track-and-trace for maximum
machine park uptime.
Streamlined Workflow:
Optimize production with evaluation and documentation.
