The Smart-400H, It's with volume of 400x400x300 mm3
Bring your designs to life with unparalleled accuracy and quality using the Smart-400H.
The Smart-400H, It's with volume of 400x400x300 mm3
Bring your designs to life with unparalleled accuracy and quality using the Smart-400H.

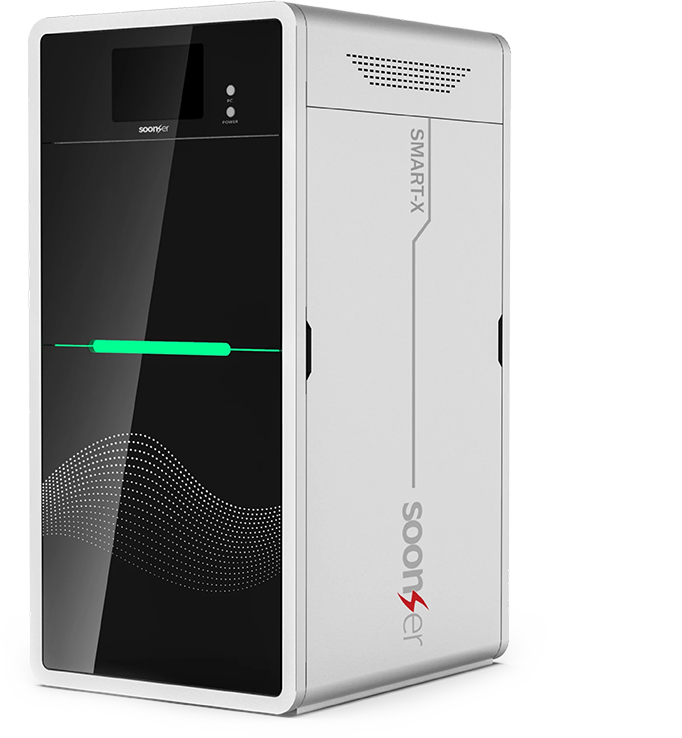

Introducing the Smart-400H, The Printer with a smart build volume of 400x400x300 mm3 and an interchangeable VAT Tray uses Stereolithography technology to create robust thermoset parts. This machine enables the production of detailed large-scale objects with precision and efficiency. Bring your designs to life with unparalleled accuracy and quality using the Smart-400H.
Printer Specifications
| Printing Dimension | 400*400*300 mm |
| Printing Accuracy | ±0.1mm(L＜100mm）±0.1%xL（L≥100mm） |
| Layer Thickness | 0.05mm-0.20mm optional |
| Scanning Speed | typical speed 6-15m/s |
| Printing Efficiency | 50-150g/h |
| Spot Mode | fixed facula |
| Spot Size | 0.08mm |
| Equipment Size | 800mm*980mm*1750mm (WDH) |
| Equipment Weight | 350KG（without resin） |
| Operating Voltage | 200-240VAC、50/60Hz、1.2kW(monophase) |
USPs
Guided Control System
Accredited by Renown Authority
Two-tier Deodorization System
High Stability
High Accuracy and Fine Details
Intelligent and Convenient
APPLICATION
